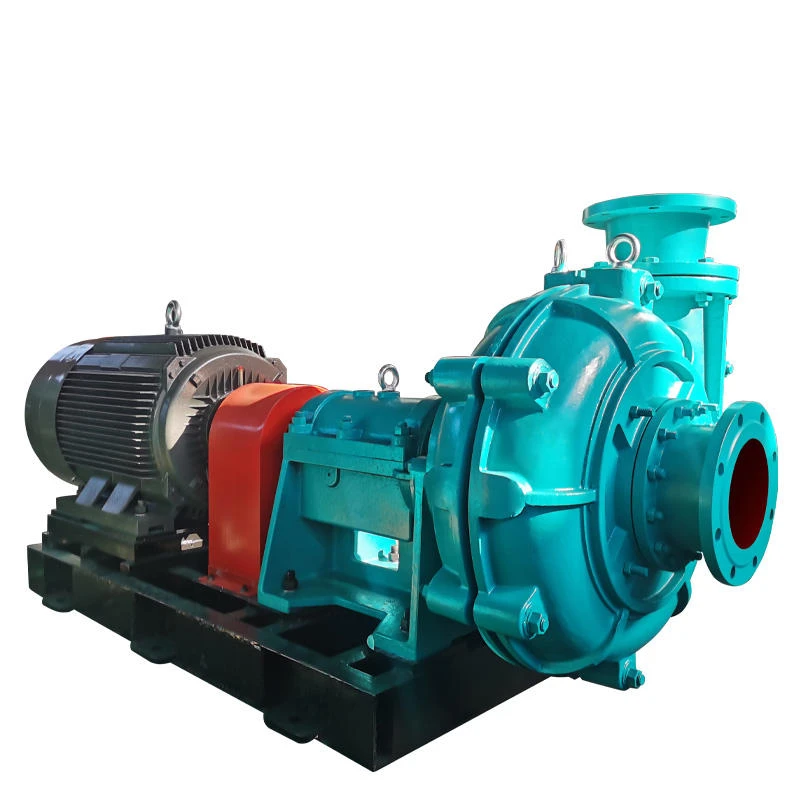

Mining Heavy-duty Slurry Pump

Cov mining hnyav- lub luag haujlwm slurry twj tso kua mis belongs rau qhov hnyav- lub luag haujlwm ntawm ZJ series kab rov tav ib zaug -theem ib zaug- suction centrifugal slurry twj tso kua mis (150ZJ / 200ZJ / 250ZJ / 300ZJ / 350ZJ) tshwj xeeb tsim rau du khoom-kua tsheb thauj mus los hauv mines, thee ntxuav, metallurgy, fais fab, thiab lwm yam. Cov khoom siv ntws yog ua los ntawm siab -chromium hnav-cov alloy resistant KmTBCr26 (A05), tso cai rau slurry hnyav concentration tsawg dua lossis sib npaug li 60%, slurry Tsawg dua lossis sib npaug li 45%. Qhov hnyav - lub luag haujlwm bracket + lub tes tsho tuab tsim, nrog ib lub twj tso kua mis lub taub hau li ntawm 13 mus rau 133 meters, thiab ntu loj ntws (300ZJ / 350ZJ) tuaj yeem ua haujlwm hauv series kom ua tau raws li qhov xav tau ntawm lub taub hau siab thiab ntev -kab raj xa dej. Lub foob foob tuaj yeem xaiv tau raws li qhov thib ob impeller + packing ua ke lossis tshuab foob, thiab lub qhov hluav taws xob tuaj yeem ntsia tau ntawm 45℃ib ntus thiab tig los ntawm 8 lub kaum ntse ntse.

Bimetallic qauv
Thickened twj tso kua mis lub cev thiab lub twj tso kua mis npog
yog ntsia rau sab nraum lub
overcurrent tivthaiv
Tight ncej foob
Ib qho yooj yim hloov ntawm ntim sealMechanical foob nrog siab zog thiab tsis muaj to
Dej lub raj mis tshuab foob ua tiav cov roj ntsha selfcirculating
Ncej thiab bearings
Cov ncej yog kho nrog quenched thiab tempered 45 # steelHigh hardness thiab durability ntawm bearings

Heavy-cov qauv kev ua haujlwm, rau cov qauv 150ZJ thiab siab dua, siv cov khoom hnyav- cov hlua khi, cov npog npog npog thiab pem hauv ntej thiab nram qab daim hlau. Tus naj npawb ntawm impeller blades raug txo mus rau 2-8, thiab cov dej ntws tau nthuav dav kom txo tau cov khoom thaiv thiab hnav. Piv nrog rau lub teeb- ntu dej num (qis dua 80ZJ), lub taub hau ntawm lub taub hau, cov kabmob vaj tse, thiab lub hauv paus ntawm qhov hnyav- ntu haujlwm yog tag nrho nce los ntawm ib theem. Lub neej ua haujlwm tas mus li yog txuas ntxiv, haum rau 24-teev cov khoom siv slurry txuas ntxiv hauv cov nroj tsuag mining.
Siab -chromium A05, muaj peev xwm tiv taus yaig hauv kev ua haujlwm. Cov khoom siv ntws (impeller / casing / pem hauv ntej thiab nram qab daim hlau) yog tus qauv nruab nrog KmTBCr26 (A05), nrog lub hardness ntawm HRC ntau dua los yog sib npaug rau 58, thiab carbides raug faib rau hauv daim ntawv network los tiv thaiv kev yaig. Yog tias qhov nruab nrab yog corrosive (xws li acidic ntxhia slurries, phosphate slurries), A49 / A33 / 316L tuaj yeem hloov kho dua tshiab; Yog hais tias nws yog purely erosive (tailings, hlau concentrates), A05 yog txaus. Lub twj tso kua mis lub cev / lub twj tso kua mis npog / bracket yog ua los ntawm HT200, thiab hauv kev ua haujlwm sib luag, nws tau hloov nrog cov hlau nplaum; Cov ncej yog 45 #, thiab lub tes tsho ncej yog 2Cr13.
Txhawb kev ua haujlwm sib luag, thiab tuaj yeem txuas ntxiv rau lub taub hau siab thiab ntev - daim ntawv thov nyob deb.
Ib lub twj tso kua mis siab tshaj plaws yog kwv yees li 130 meters. Yog tias lub taub hau dhau qhov no, nws tuaj yeem ua tiav lub taub hau ntawm 200-250 meters los ntawm kev ua haujlwm sib luag ntawm tib tus qauv, haum rau ntev - cov kav dej tailings thiab roob tsheb thauj mus los. Nyob rau hauv parallel kev khiav hauj lwm, lub bracket yog upgraded rau ductile hlau, thiab lub hauv paus yog ntxiv dag zog.
Peb hom ntsaws ruaj ruaj + plaub hom kev sib kis, nrog siab ntawm - qhov chaw hloov tau.
Cov ntsaws ruaj ruaj: packing seal / txo-pressure cover auxiliary impeller + packing / mechanical seal, xaiv raws li lub siab tuaj txawv teb chaws thiab seb puas tso cai.
Kev sib txuas ncaj qha DC / nqaim V- siv CR, CL, CV, ZV, nrog kev sib hloov ceev ntawm 490-1480 rpm muaj nyob rau hauv ntau lub zog, sib xws nrog zaus hloov pauv.

Daim ntawv thov scenario

Hlau mines: Fe concentrate / Cu concentrate / Kub ore concentrator pub, tailings cia thauj, classifier xa cov xuab zeb

Coal mines / Coal ntxhua khaub ncaws: Hnyav nruab nrab thee sib cais, thee slurry pumping, flotation huv thee / Tail thee

Coal mines / Coal ntxhua khaub ncaws: Hnyav nruab nrab thee sib cais, thee slurry pumping, flotation huv thee / Tail thee

Coal mines / Coal ntxhua khaub ncaws: Hnyav nruab nrab thee sib cais, thee slurry pumping, flotation huv thee / Tail thee

Lus Nug: Yuav ua li cas xaiv ntawm mining hnyav slurry twj thiab ZJL ntsug twj?
Teb: Rau cov kua dej hauv qab lub qhov dej, cov dej khib nyiab, thiab lub qhov dej sib sau → xaiv ZJL ntsug twj tso kua mis (tsis muaj ncej foob, tsis xav tau lub hauv paus); rau cov kab tseem ceeb hauv kev ua cov ntxhia, tailings reservoirs rau ntev - kev thauj mus los deb, thiab thee ntxuav hnyav xov xwm → ZJ kab rov tav hnyav - ntu ntu (tuaj yeem txuas nrog hauv series, siab lub taub hau, loj txaus txaus).
Lus Nug: Yuav xaiv li cas ntawm A05 thiab A49?
Teb: Rau kev puas tsuaj ntshiab (tailings, hlau mloog zoo, thee slurry) → A05 txaus; rau corrosion + abrasion ua ke (desulfurization slurry, phosphogypsum, acidic slurry) → xaiv A49 (Cr30 hom, acid-resistant + hnav-resistant).
Lus Nug: Nws puas tuaj yeem siv thaum lub slurry concentration siab dua 60%?
Teb: 60% yog qhov nominal siab txwv ntawm ZJ series (slurry hnyav concentration). Yog tias nws siab dua, nws raug nquahu kom ua qhov me me - ntsuas ntsuas lossis hloov cov txheej txheem ntws hauv qab ntawm cov thickener ua ntej. Txwv tsis pub, lub neej kev pab cuam ntawm lub impeller yuav luv luv.
Lus Nug: Lawv puas tuaj yeem txuas rau hauv series? Lub taub hau siab tshaj plaws uas lawv tuaj yeem ncav cuag yog dab tsi?
Teb: Yog. 300ZJ / 350ZJ tuaj yeem txuas nrog hauv koob. Ob chav nyob tuaj yeem ncav cuag 200+ meters hauv qhov siab, thiab peb chav nyob tuaj yeem ncav cuag siab dua, nyob ntawm txoj kab txuas txuas. Thaum txuas nrog hauv series, lub bracket yog hloov mus rau cov hlau ductile thiab lub hauv paus yog ntxiv dag zog.
